Concrete is one of the maximum crucial constructing materials in the global. Whether or not you’re building a house, bridge, road, or industrial constructing, the first-rate of concrete determines the electricity and sturdiness of the structure. One key factor that impacts concrete great is concrete slump.
On this whole guide, we will provide an explanation for what concrete droop approach, why it’s miles essential, how it’s far measured, one of a kind forms of droop, and how it influences creation tasks.
What Is Concrete Slump?
Concrete slump refers back to the degree of workability or consistency of clean concrete earlier than it sets. Workability method how clean it is to mix, delivery, area, and end concrete.
When concrete is too stiff, it will become tough to handle. Whilst it’s far too moist, it can lose strength. That is why measuring concrete slump is crucial on construction websites.
In easy phrases:
- Low slump = stiff and dry concrete
- Medium slump = workable concrete
- High slump = wet and flowable concrete
The stoop cost helps engineers decide whether or not the combination is appropriate for a particular task.
Why Concrete Slump Is Important
Understanding concrete slump is important for numerous reasons:
1. Ensures Proper Workability
Concrete have to be smooth to place and compact with out segregation.
2. Maintains Consistency
Slump testing guarantees each batch of concrete has the identical first-class.
3. Prevents Structural Problems
Incorrect slump can lead to:
- Cracks
- Honeycombing
- Weak bonding
- Reduced durability
4. Saves Time and Money
Correct slump reduces rework and material wastage.

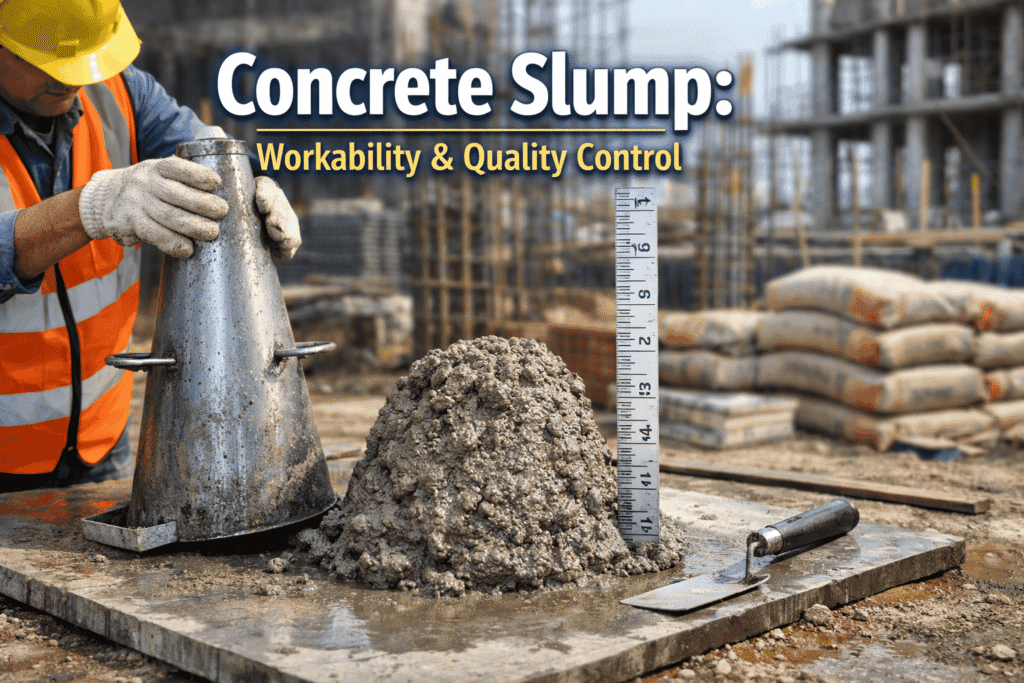

How Concrete Slump Is Measured
Correct slump is measured the usage of a easy method known as the slump test. This take a look at is extensively used on construction sites due to the fact it’s miles short and cost-powerful.
Equipment Required
- Slump cone (metal mold)
- Tamping rod
- Base plate
- Measuring scale
- Fresh concrete sample
Step-by-Step Concrete Slump Test Procedure
Follow these steps to measure concrete slump correctly:
1 – Prepare the Equipment
- Vicinity the stoop cone on a flat, non-absorbent floor.
- Moisten the cone lightly to save you sticking.
2 – Fill the Cone
- Fill the cone with fresh concrete in 3 identical layers.
- Compact every layer with 25 strokes of the tamping rod.
3 – Level the Surface
- Cast off extra concrete from the top.
- Make certain the surface is even.
4 – Lift the Cone
- Slowly lift the cone vertically.
- Do now not twist or shake it.
5 – Measure the Slump
- Degree the difference between the authentic peak of the cone and the peak of the slumped concrete.
- Report the value in millimeters.
This size is known as the concrete slump value.
Types of Concrete Slump
There are three main types of slump results:
1. True Slump
- Concrete subsides evenly.
- Indicates proper workability.
- Most desirable result.
2. Shear Slump
- One side slides off.
- Indicates lack of cohesion.
- May require remixing.
3. Collapse Slump
- Concrete collapses completely.
- Indicates too much water.
- Now not suitable for structural use.
Know-how these types enables engineers decide whether or not to simply accept or reject a batch.
Standard Slump Values for Different Applications
Different creation works require exclusive slump values.
Low Slump (0–25 mm)
Used for:
- Road construction
- Pavements
- Mass concrete
Medium Slump (25–75 mm)
Used for:
- Beams
- Columns
- Slabs
High Slump (75–150 mm)
Used for:
- Heavily reinforced sections
- Pumped concrete
- Complex formwork
Selecting an appropriate hunch ensures proper placement and compaction.
Factors That Affect Concrete Slump
Several factors influence concrete slump:
1. Water-Cement Ratio
More water increases slump but reduces strength.
2. Aggregate Size
Larger aggregates reduce slump.
3. Admixtures
Plasticizers and superplasticizers increase slump without adding water.
4. Temperature
High temperature reduces workability faster.
5. Mixing Time
Overmixing or undermixing can change slump values.
Common Problems Related to Concrete Slump
Problem 1 – Low Slump
- Difficult to place
- Poor compaction
- Voids and honeycombing
Problem 2 – High Slump
- Segregation
- Bleeding
- Reduced strength
Problem 3 – Inconsistent Slump
- Uneven structure strength
- Surface defects
- Structural durability issues
Regular slump testing prevents these problems.
Advantages of Monitoring Concrete Slump
- Quick quality control method
- Easy to perform on-site
- Low cost
- Immediate results
- Helps maintain uniformity
Limitations of Concrete Slump Test
While useful, the slump test has some limitations:
- Not suitable for very dry mixes
- Not ideal for self-compacting concrete
- Does not measure strength directly
- Requires proper handling for accuracy
Despite these barriers, it remains the maximum generally used subject check for concrete workability.
Tips for Accurate Concrete Slump Results
To make sure dependable results:
- Test fresh concrete within 10–15 minutes
- Use clean equipment
- Perform the test on a level surface
- Avoid shaking or disturbing the cone
- Repeat test if results appear unusual
Proper approach ensures truthful measurements.
Concrete Slump vs Concrete Strength
Many people confuse slump with strength. However:
- Slump measures workability.
- Strength relies upon on curing, mix layout, and water-cement ratio.
High hunch does not continually imply strong concrete. In truth, too much water can reduce strength.
FAQs
Q1. What does concrete hunch measure?
Concrete slump measures the workability or consistency of clean concrete.
Q2. What’s the appropriate concrete droop?
The ideal slump depends on the project type. Most structural works use 25–75 mm slump.
Q3. Can adding water increase concrete slump?
Yes, but adding too much water can reduce electricity and sturdiness.
Q4. How frequently need to concrete droop be tested?
It should be examined for every batch added on-website online or whilst there may be a postpone in placement.
Q5. Is concrete slump associated with curing?
No. Slump is measured before curing. Curing affects strength after placement.
Conclusion
Concrete slump plays a essential position in ensuring the nice, consistency, and sturdiness of creation projects. By using measuring workability before placement, engineers can avoid structural defects and ensure proper compaction.
Whether you are running on a small residential mission or a massive commercial shape, monitoring concrete droop facilitates hold high requirements in creation. Don’t forget, the proper stability among workability and energy is prime to long-lasting concrete structures.
Normal testing, correct blend changes, and careful coping with will make certain that your concrete plays as anticipated — sturdy, durable, and reliable.
